COX-7EN2

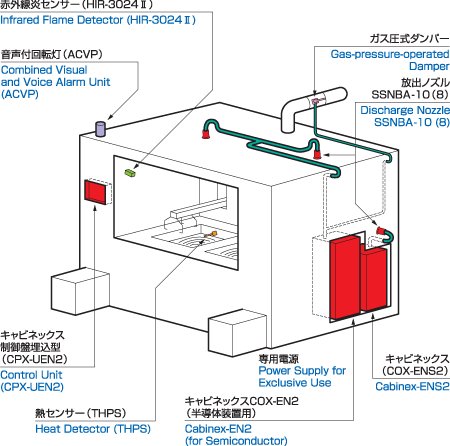

Below is a typical installation drawing for Cleaning Equipment.
Explanation of each part of the Cabinex system.
（１） CABINEX Body・Main : to contain CO 2 Cylinder and Control Panel. It should be selected in accordance with the volume of extinguishing chemical agent required.
（２） CABINEX Body・Sub : to contain only CO 2 Cylinder which is discharged together with Main’s simultaneously.
（３） TH Sensor : Heat Detector at 70℃. Hatsuta’s original sensor.
（４） Infrared Sensor : Flame Detector. Hatsuta’s original sensor.
（５） Nozzle : Total flooding system.
-
Cabinex EN2 is for FPD, SEMI, and Machininf tool.
We can drsign based on your machine.You can choose lots of Options.
-
Fire Detection Setup:
・ Selectable between “AND” function and “OR”function.
・ No limitation to combination of types of sensors.
・ Small sensors(developed by HATSUTA)available. -
Flexible Installation and Functional Setup:
・ Selectable between “Automatic” and “Manual” operation modes.
・ Selectable between “all-in-one” combined unit and separated units of Operation Panel and Extinguishing Agent Container. -
Self-Supervision and Safety Precaution:
・ Automatic alarm indication of possible fault(s) in the sensors(s) and of pressure reduction in the Extinguishing Agent Container.
| Specification | ||||||
|---|---|---|---|---|---|---|
| Integrated Type | ||||||
| Certification No. | COX-3EN2 | COX-5EN2 | COX-7EN2 | COX-14EN2 | COX-18EN2 | |
| Main Chasis & Container | External Dimentions (H×W×D)mm |
760×290×180 | 920×320×215 | 920×320×215 | 1,160×400×300 | 1,160×400×300 |
| Weight | Approx. 23kg | Approx. 35kg | Approx. 37kg | Approx. 86kg | Approx. 90kg | |
| Fire Extinguishing Agent | Carbon Dioxide ( CO2 ) | |||||
| Weight of the Fire Extinguishing Agent | 3.2kg | 4.6kg | 6.8kg | 14.0kg | 18.0kg | |
| Coating Specifications | Coating Color : Red Melamine Baking Finish, Japaning | |||||
| Material | Steel ( SPCC ) t＝1.2mm | Steel ( SPCC ) t＝1.6mm | ||||
| Operating Temperature Range | 0℃～＋40℃ | |||||
| Control Function | Input Supply Voltage Range | 100V, 110V, 200V, 220V, AC 50/60Hz ( With Each Voltage Terminal ) | ||||
| Power Cunsumption | 24VA Max. | |||||
| Operation Circuit Voltage | 24V DC | |||||
| Sensor Input Circuit | 2 System ( AND / OR Operation Selection System ) | |||||
| Push Button for Start-Up | Red Push Button ( With Breaking Acrylic Plate ) | |||||
| Reset Button | White Push Button | |||||
| Automatic/Manual Operations Selector Switch | The Fire Extinguisher can be Operated with a Sensor Input Signal in the Automatic Mode | |||||
| Alarm Buzzer | Electronic Buzzer ( Continuous Sound in Case of Fire、Intermittent Sound in Case of Abnormal Condition ) | |||||
| Buzzer Stop Switch | Stopｓ the Intermittent Sound in Case of Abnormal Condition ( The Continuous Sound in Case of a Fire Cannot be Stopped ) | |||||
| Power Indicator Lamp | Green LED | |||||
| Auto Indicator Lamp | Green LED ( Light Up in the Auto Mode ) | |||||
| Fire Indicator Lamp | Red LED ( Flashing in Case of Fire ) | |||||
| Discharge Indicator Lamp | Red LED ( Flashing when Discharge ) | |||||
| Fault Indicator Lamp | Yellow LED ( Flashing at start-up unit failure, sensor wiring line suspended ) | |||||
| Barn-out Indicator Lamp | Red LED ( Flashing at Sensor Wiring Line Suspended ) | |||||
| Unit Failure Indicator Lamp | Red LED ( Flashing When the Start-Up Unit Connector is not Connected Yet ) | |||||
| Reduced Pressure Indicator Lamp | Red LED ( Flashing When the Fire Extinguishing Container Inner Pressure Drops ) | |||||
| Buzzer Stop Indicator Lamp | Red LED ( Flashing at Buzzer Stop ) | |||||
| Fire Annunciating Contact | Contact c×1（ Contact Switches at Sensor Alarm ） | |||||
| Machine Stop Contact | Contact c×1, Contact a×1, Contact b×1（ Contact Switches at AC Power Down ） | |||||
| Power Failure Annunciating Contact | Contact c×1（ Contact Switches at Discharge ） | |||||
| Fault Annunciating Contact | Contact c×1（ Contact Switches at Fault, except Start-Up Unit Connection Fault ） | |||||
| Automatic/Manual Annunciating Contact | Contact c×1（ Manual Mode B-B2 is Closed, Auto Mode B-B1 is Closed ） | |||||
| Contact Specification | Contact Capacity : 60W/125VA Max. Maximum Current: 1A Maximum Voltage: 250V AC/200V DC | |||||
| Battery | Ni-Cd battery/24V DC/0.45Ah/5hours | |||||
| Timer | Delayable up to 10 seconds | |||||
| Remote start (Manual Release) |
Possible to actuate by remote push button | |||||
| Specification | |||
|---|---|---|---|
| Separate Type Control Unit | |||
| Certification No. | CPX-REN2 | CPX-UEN2 | |
| Main Chasis & Container | External Dimentions (H×W×D)mm |
340×280×90 | 220×340×130 |
| Weight | Approx. 6kg | Approx. 6.3kg | |
| Fire Extinguishing Agent | Carbon Dioxide ( CO2 ) | ||
| Weight of the Fire Extinguishing Agent | - | ||
| Coating Specifications | Coating Color : Red Melamine Baking Finish, Japaning | ||
| Material | Steel ( SPCC ) t＝1.6mm | ||
| Operating Temperature Range | 0℃～＋40℃ | ||
| Control Function | Input Supply Voltage Range | 100V, 110V, 200V, 220V, AC 50/60Hz ( With Each Voltage Terminal ) | |
| Power Cunsumption | 24VA Max. | ||
| Operation Circuit Voltage | 24V DC | ||
| Sensor Input Circuit | 2 System ( AND / OR Operation Selection System ) | ||
| Push Button for Start-Up | Red Push Button ( With Breaking Acrylic Plate ) | ||
| Reset Button | White Push Button | ||
| Automatic/Manual Operations Selector Switch | The Fire Extinguisher can be Operated with a Sensor Input Signal in the Automatic Mode | ||
| Alarm Buzzer | Electronic Buzzer ( Continuous Sound in Case of Fire、Intermittent Sound in Case of Abnormal Condition ) | ||
| Buzzer Stop Switch | Stopｓ the Intermittent Sound in Case of Abnormal Condition ( The Continuous Sound in Case of a Fire Cannot be Stopped ) | ||
| Power Indicator Lamp | Green LED | ||
| Auto Indicator Lamp | Green LED ( Light Up in the Auto Mode ) | ||
| Fire Indicator Lamp | Red LED ( Flashing in Case of Fire ) | ||
| Discharge Indicator Lamp | Red LED ( Flashing when the Start-Up Unit Operates ) | ||
| Fault Indicator Lamp | Yellow LED ( Flashing at Start-Up Unit Failure, Sensor Wiring Line Suspended and Fire Extinguishing Agent Container Reduced Pressure ) | ||
| Barn-out Indicator Lamp | Red LED ( Flashing at Sensor Wiring Line Suspended ) | ||
| Unit Failure Indicator Lamp | Red LED ( Flashing When the Start-Up Unit Connector is not Connected Yet ) | ||
| Reduced Pressure Indicator Lamp | Red LED ( Flashing When the Fire Extinguishing Container Inner Pressure Drops ) | ||
| Buzzer Stop Indicator Lamp | Red LED ( Flashing at Buzzer Stop ) | ||
| Fire Annunciating Contact | Contact c×1 | ||
| Machine Stop Contact | Contact c×1, Contact a×1, Contact b×1 | ||
| Power Failure Annunciating Contact | Contact c×1 | ||
| Contact Specification | Contact Capacity : 60W/125VA Max. Maximum Current: 1A Maximum Voltage: 250V AC/200V DC | ||
| Timer | Delayable up to 10 seconds | ||
| Specification | ||||||
|---|---|---|---|---|---|---|
| Separate Type | ||||||
| Model | COX-7ENS2 | COX-14ENS2 | COX-18ENS2 | |||
| Main Chasis & Container | External Dimentions (H×W×D)mm |
920×320×215 | 1,160×400×300 | 1,160×400×300 | ||
| Weight | Approx. 36kg | Approx. 84kg | Approx. 88kg | |||
| Fire Extinguishing Agent | Carbon Dioxide ( CO2 ) | |||||
| Weight of the Fire Extinguishing Agent | 6.8kg | 14kg | 18kg | |||
| Coating Specifications | Coating Color: Red Melamine Baking Finish, Japaning | |||||
| Material | Steel ( SPCC ) t＝1.2mm | Steel ( SPCC ) t＝1.6mm | ||||
| Operating Temperature Range | 0℃～＋40℃ | |||||
| Unit Product Code | 60050299 | - | ||||
| Maitenance valve | With Out | |||||
| Specification | |||||
|---|---|---|---|---|---|
| Separate Type | Sub Type | ||||
| Model | COX-30ENA2 | COX-45ENA2 | COX-30ENA2-S | COX-45ENA2-S | |
| Main Chasis & Container | External Dimentions (H×W×D)mm |
1,755×400×330 | 1,915×525×380 | 1,755×400×330 | 1,915×525×380 |
| Weight | Approx. 140kg | Approx. 180kg | Approx. 140kg | Approx. 180kg | |
| Fire Extinguishing Agent | Carbon Dioxide ( CO2 ) | ||||
| Weight of the Fire Extinguishing Agent | 30kg | 45kg | 30kg | 45kg | |
| Coating Specifications | Coating Color: Red Melamine Baking Finish, Japaning | ||||
| Material | Steel ( SPCC ) t＝1.6mm | ||||
| Operating Temperature Range | 0℃～＋40℃ | ||||
| Maitenance valve | With | With Out | |||
