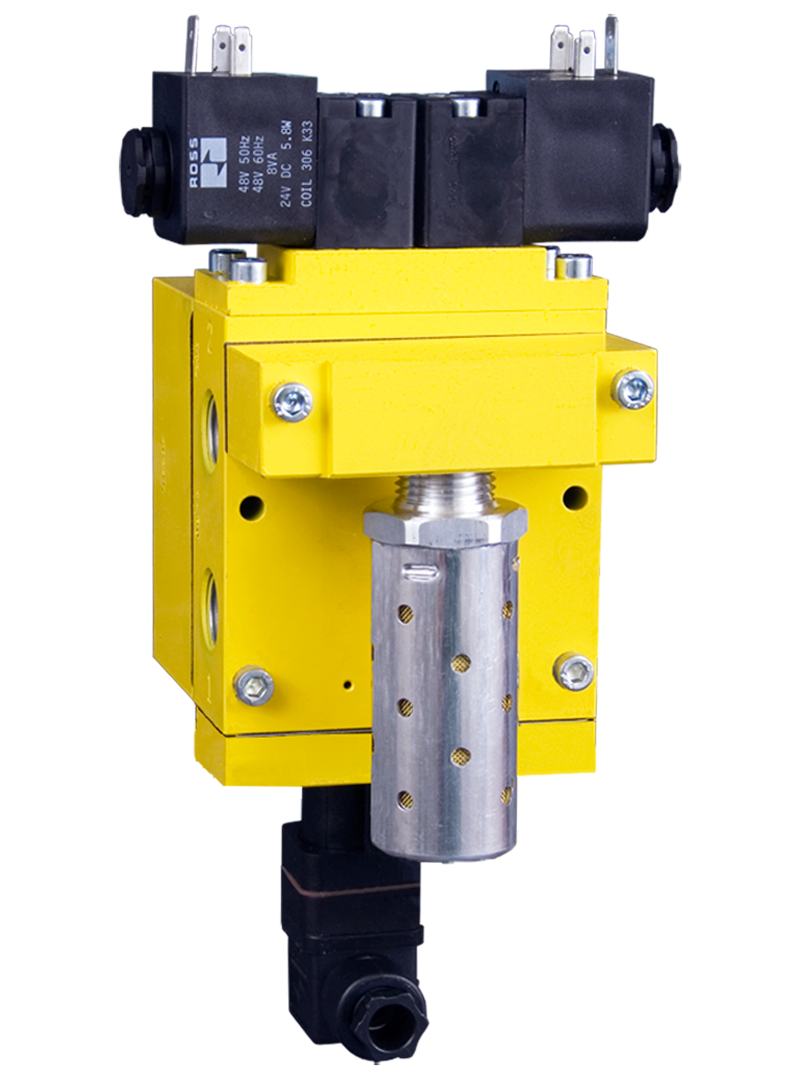

DM1 Series E Double Valves

PORTS (IN-OUT):

1/4"

PORTS (EXH):

1/2"

PORT THREAD:

BSPP

DYNAMIC MONITORING:

Yes

MOUNTING:

Inline

ACTUATION:

Solenoid Controlled

STATUS INDICATOR:

Included

ELEC CONN:

DIN

VOLTAGE:

110 VAC

CV (IN-OUT):

1.3

CV (EXH):

2.4

FLOW MEDIA:

Filtered Air

INLET PRESSURE RANGE:

30 to 120 psig (2 to 8.3 bar)

MEDIA TEMPERATURE RANGE:

40 to 175 F (4 to 80 C)

AMBIENT TEMPERATURE RANGE:

15 to 122 F (-9 to 50 C)

WEIGHT:

5.0 lbs (2.27 kg)
