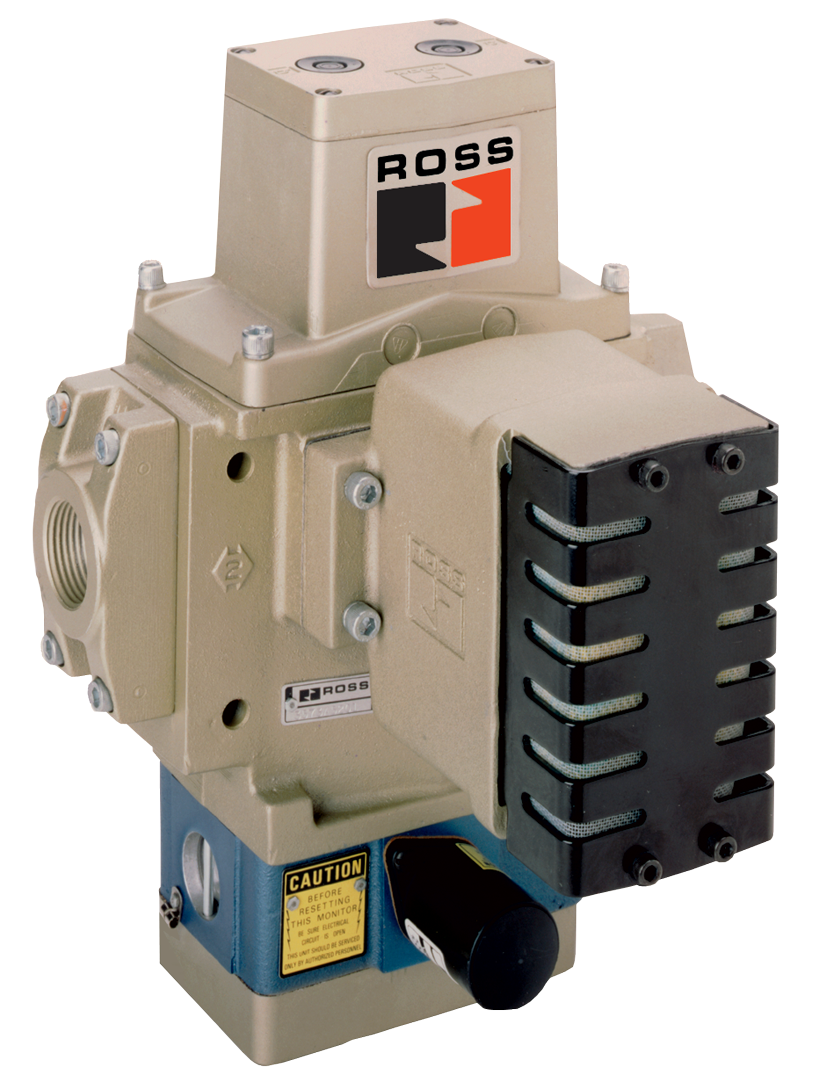

Double Valves with Electro-Pneumatic E-P Monitor SERPAR® 35 Series

PORTS (IN-OUT):

1-1/2"

PORTS (EXH):

1-1/2"

PORT THREAD:

NPT

DYNAMIC MONITORING:

Included

DYNAMIC MEMORY:

Included

ACTUATION:

Solenoid Controlled

OVERRIDE:

Included

INPUT:

Dual Signal

RESET TYPE:

Not Included

VOLTAGE:

24 VDC

INLET ORIENTATION:

-

CV (IN-OUT):

21

CV (EXH):

43

MOUNTING:

Inline

FLOW MEDIA:

Filtered Air

INLET PRESSURE RANGE:

30 to 125 psig (2 to 8.5 bar)

MEDIA TEMPERATURE RANGE:

40 to 175 F (4 to 80 C)

AMBIENT TEMPERATURE RANGE:

40 to 120 F (4 to 50 C)

WEIGHT:

35.0 lbs (15.88 kg)
