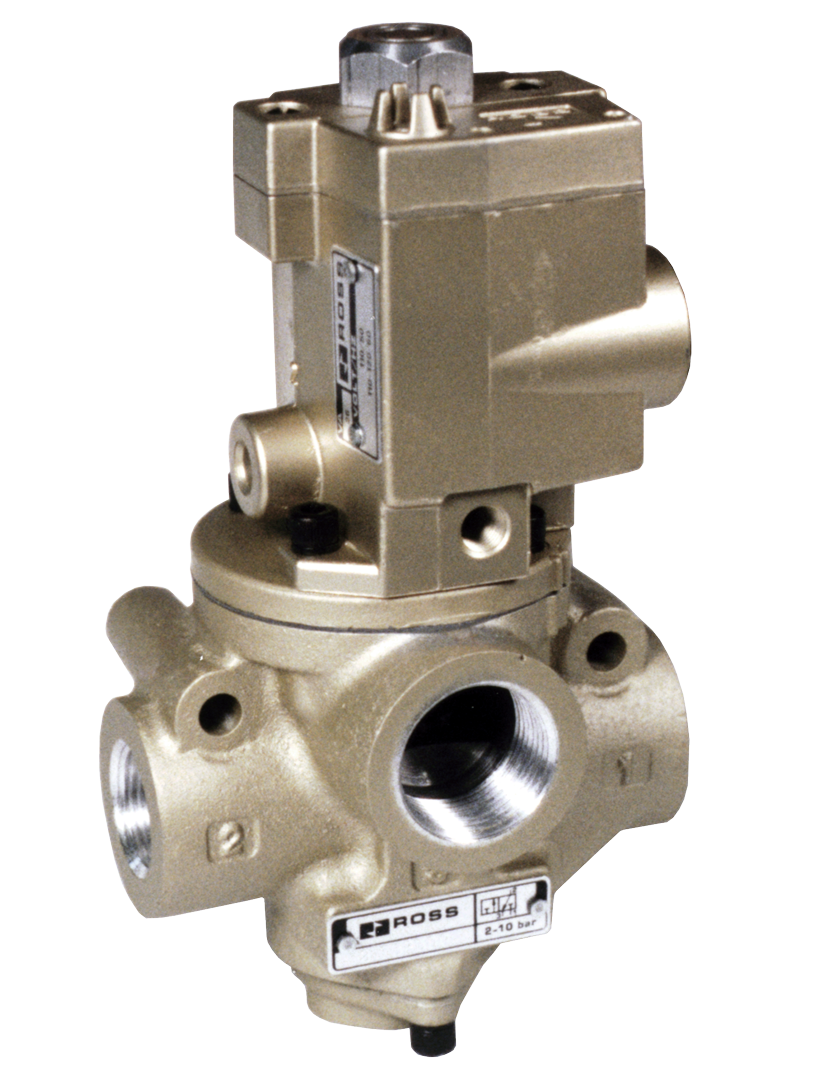

Poppet Valves, High & Low Temperature 21 Series

APPLICATION:

High Temp

FUNCTION:

3/2 Single

DEFAULT POSITION:

Normally Open

ACTUATION:

Pressure Controlled

PORT SIZE (IN-OUT):

1/2

PORT SIZE (EXH):

1/2

PORT THREAD:

BSPP

VOLTAGE:

-

RETURN TYPE:

Spring

CV (IN-OUT):

2.8

CONSTRUCTION:

Poppet

MANUAL OVERRIDE:

Non-locking

CV (EXH):

3.2

CONNECTOR TYPE:

Hard wired (1/2 inch conduit)

BASIC SIZE:

3/8

MOUNTING:

Inline

CERTIFICATIONS:

SIL

FLOW MEDIA:

Filtered Air

INLET PRESSURE RANGE:

15 TO 150 PSIG (1 TO 10 BAR)

MEDIA TEMPERATURE RANGE:

0 TO 300 F (-17 TO 150 C)

AMBIENT TEMPERATURE RANGE:

0 TO 250 F (-17 TO 122 C)

WEIGHT:

2.3 lbs (1.04 kg)
