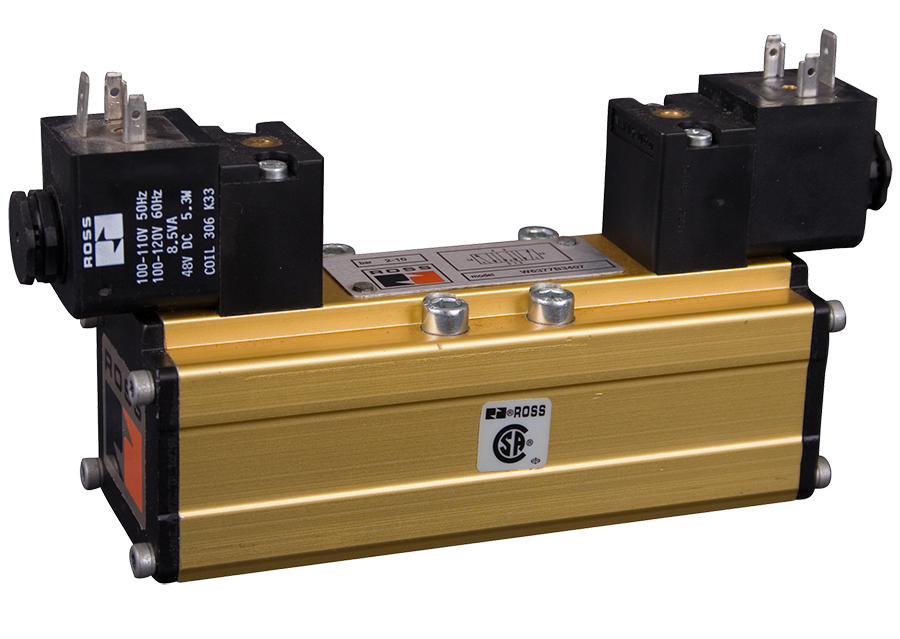

Ross ISO 5599/I, Spool & Sleeve Valves W60 Series

ISO SIZE:

3

BASE PORT SIZE:

1/2 - 3/4

FUNCTION:

5/2 Double

CENTER POSITION:

-

VOLTAGE:

24 VDC

CONSTRUCTION:

Spool & Sleeve

ACTUATION:

Solenoid Controlled

AVG CV:

3.8

MANUAL OVERRIDE:

Non-Locking

MOUNTING:

Base Mounted

FLOW MEDIA:

Filtered Air

APPLICATION:

Standard Temp

INLET PRESSURE RANGE:

VACUUM to 150 PSIG (VACUUM to 10 BAR)

AMBIENT TEMPERATURE RANGE:

40 to 120 F (4 to 50 C)

MEDIA TEMPERATURE RANGE:

40 to 175 F (4 to 80 C)

WEIGHT:

3.9 lbs (1.77 kg)
