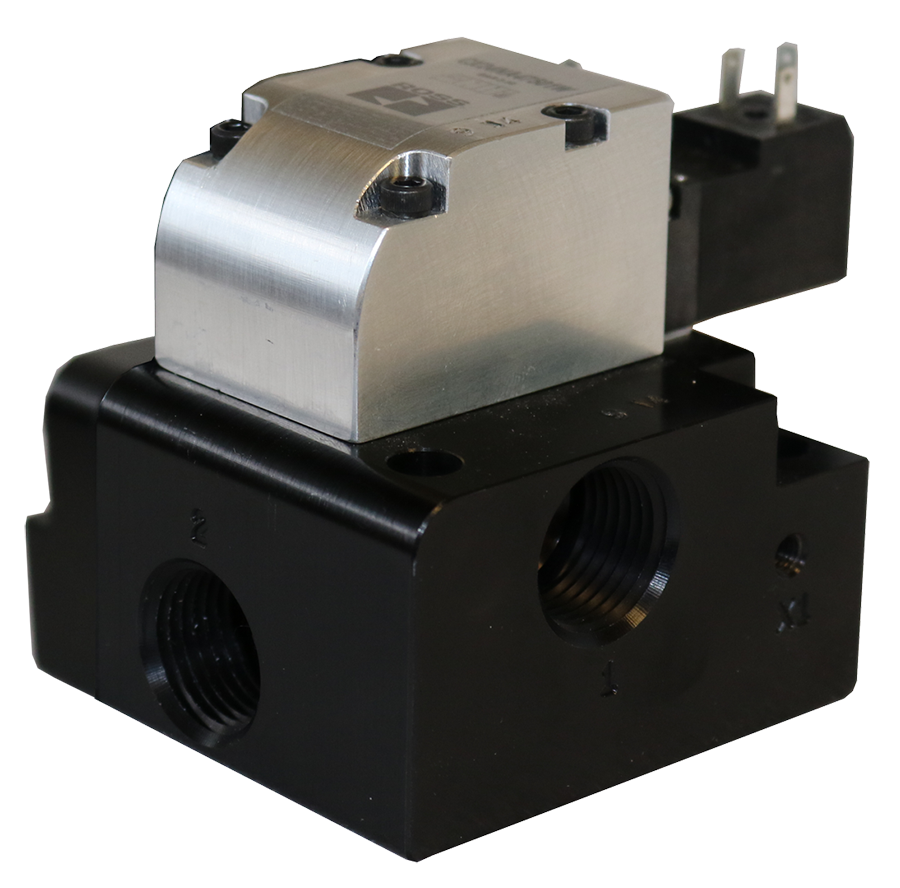

Valves & Valve Manifolds

NBR STATIONS:

3

TYPE:

3/2 Single

ACTUATION:

Solenoid Controlled

DEFAULT POSITION:

Normally Open

PORT SIZE (IN):

1/2

PORT SIZE (OUT):

3/8

THREAD TYPE:

NPT

VOLTAGE:

24 VDC

MANUAL OVERRIDE:

Non-locking

CONSTRUCTION:

Poppet

AVG CV:

3.5

CONNECTOR TYPE:

DIN 43650 Form C

MOUNTING:

Inline

FLOW MEDIA:

Filtered Air

INLET PRESSURE RANGE:

VACUUM TO 145 PSIG (VACUUM TO 10 BAR)

MEDIA TEMPERATURE RANGE:

40 TO 175 F (4 TO 80 C)

AMBIENT TEMPERATURE RANGE:

40 TO 120 F (4 TO 50 C)

WEIGHT:

10.5 lbs (4.76 kg)
